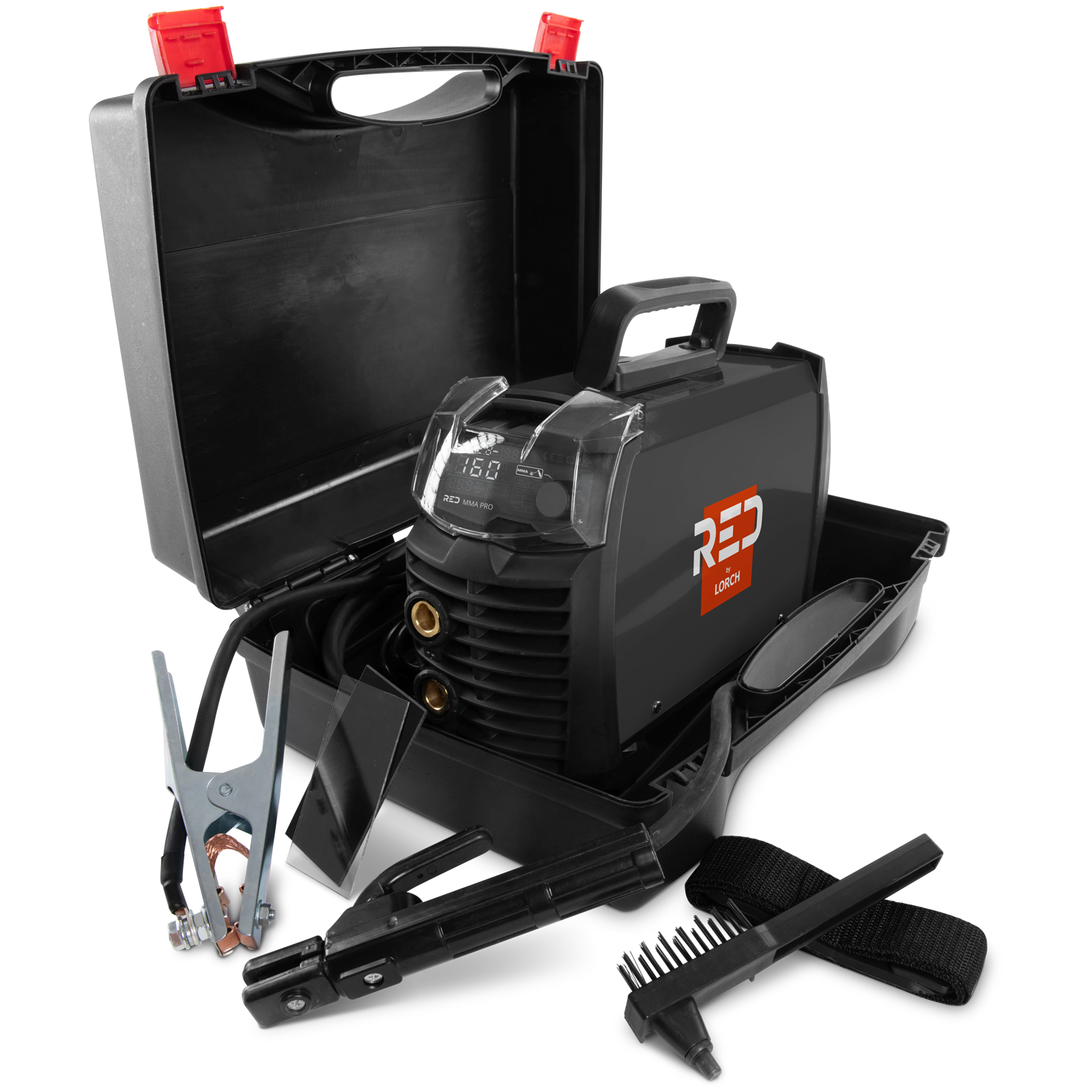

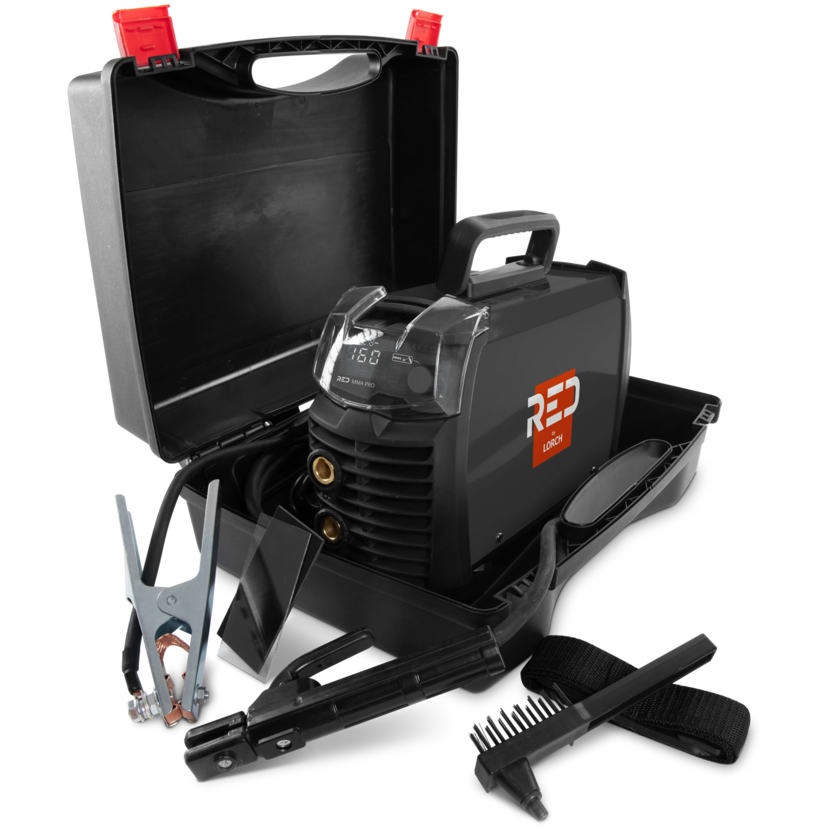

MMA 160 PRO
Perfect for hobby welders and beginners.
  • Robust, flexible and ready for use anywhere.
  • Ideal for assembly work and simple repairs.
  • Electrode diameter to up to 3.25 mm
  • Ultra-lightweight 5 kg
MMA 160 PRO

Small, light and handy

The compact housing and low weight make the device the perfect companion – quick to stow away, easy to transport and ready for use anywhere.

Very easy to use

Clear display of welding parameters on the LCD display. Selection of welding mode and special functions at the touch of a button.

Includes instructions for selecting welding parameters

The smart setting assistant provides recommendations for the optimal selection of welding parameters and electrode thickness to match the thickness of the material to be welded.

Perfect for use in your hobby workshop.

Welds almost all weldable materials and is so easy to use that even beginners can start welding right away.

Technical data

Electrode welding
Welding range 230 V: [A] 10 - 160
Weldable electrodes: [Ø in mm] 1.6 - 3.25
Mains plug
Mains plug: Schuko
Standards and approvals
Protection class: IP34S
Insulation class: F
Norm/Standard: EN 60974-01
Designation/Certification: CE, S
Cooling type
Cooling type: Gas-cooled
Weights
Weight: [kg] 5

MMA Standard

  • Simple single-button operation
  • Continuous current adjustment
  • Electrode preselection (basic, rutile and CEL) for optimum welding parameters
  • Ampere-accurate digital display
